Lowbed Trailer Price: 15200 USD

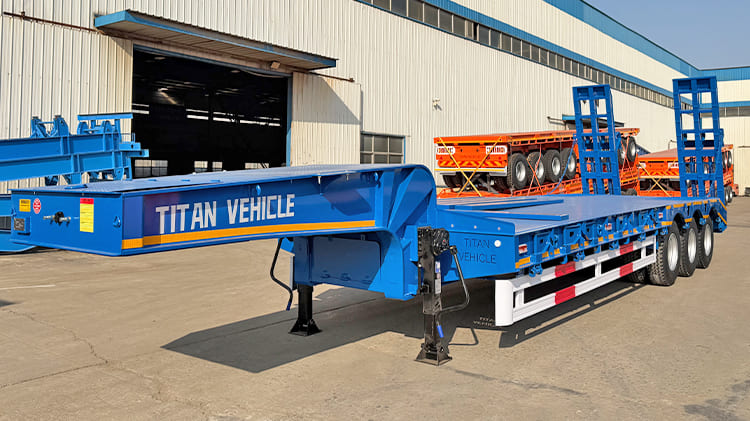

The 3 axle low bed trailer price configuration is built around an open and unobstructed frame that eliminates traditional enclosed panels. By removing side walls and roof structures, the low low bed trailers provides full-height clearance, making it capable of transporting tall, oversized, or irregularly shaped machinery that standard trailers cannot accommodate.

Specification of Lowbed Trailer Price

Overall Dimension: 13000mm*3000mm*3400mm

Load Capacity: 60 ton

Floor Plate: 5mm thick pattern plate

Side Beam: 300mm high, 8mm thick

Axles: 3 axles, 13ton, BPW

Tire: 12 units, 12R22.5

Ramp: thickened spring ramp

Landing Gear: 28 ton

Leaf Spring: 10 layers

Suspension: mechanical suspension

Lamp: LED Lamp

Advantage of Lowbed Trailer Price

At the heart of the 40 ft low bed trailer is a main beam constructed from high-strength alloy steel, chosen for its superior resistance to bending, cracking, and long-term stress fatigue. This material creates the rigid structural core that allows the 3 axle lowbed trailer for sale to perform consistently under continuous heavy-duty operations.

The gooseneck section incorporates a strategically engineered dual-reinforcement design, which significantly reduces deformation caused by concentrated pressure loads. This reinforced setup provides greater stability for the semi low bed trailer, particularly when traveling over uneven or rugged terrain.

This open-frame concept also increases operational flexibility, allowing the 3 axle lowbed trailer for sale to handle a wide range of industrial applications across Sierra Leone, where transport requirements often involve heavy equipment and off-standard loads. For many operators, the adaptability of the 40 feet low bed trailer becomes a decisive advantage in daily logistics.

TITAN integrates crossbeams crafted from high-strength steel, precisely spaced at 500 mm intervals. These crossbeams work together with diagonal bracing components to form a unified stress distribution system. This optimized configuration increases the service life of the low low bed trailers by reducing localized fatigue at high-load sections. For users in Sierra Leone, where road surfaces vary widely, this robust frame ensures dependable performance over years of operation.

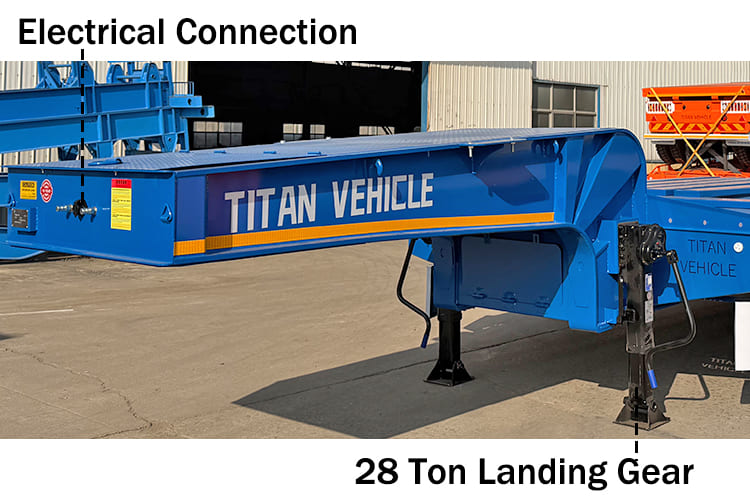

The landing gear, a fundamental component of the 3 axle low bed trailer price structure, is engineered with a 28-ton lifting capacity and a 60-ton static load rating. Its specially designed multi-directional base plate stabilizes the low bed semi trailer for sale on soft or uneven ground such as gravel, sand, or mud.

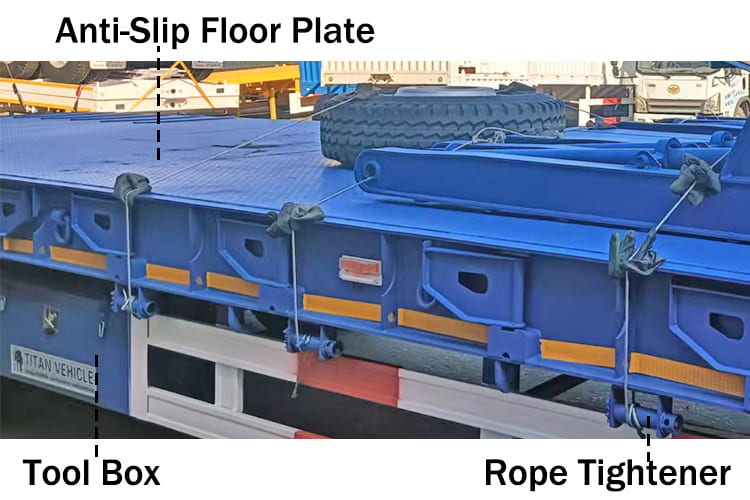

Cargo safety is reinforced through continuous side-mounted rope tensioners, offering multiple secure tie-down points along both sides of the 40 feet low bed trailer. The deck surface is built from 5 mm patterned steel, providing superior grip compared to conventional flat steel plates.

Rear anti-slip bars form an additional protective layer, allowing operators to load heavy machinery safely and maintain stability throughout the transport process. These features enhance daily operational reliability for owners of the 3 axle lowbed trailer for sale and low low bed trailers.

The suspension system is built upon a heavy-duty mechanical spring assembly that disperses road shock and minimizes vibration. Manufactured from high-strength steel, the leaf springs improve driving stability and protect both the semi low bed trailer and the equipment being transported. Whether the 40 ft low bed trailer is operating on rural pathways, construction access roads, or busy regional highways, the suspension ensures consistent performance.

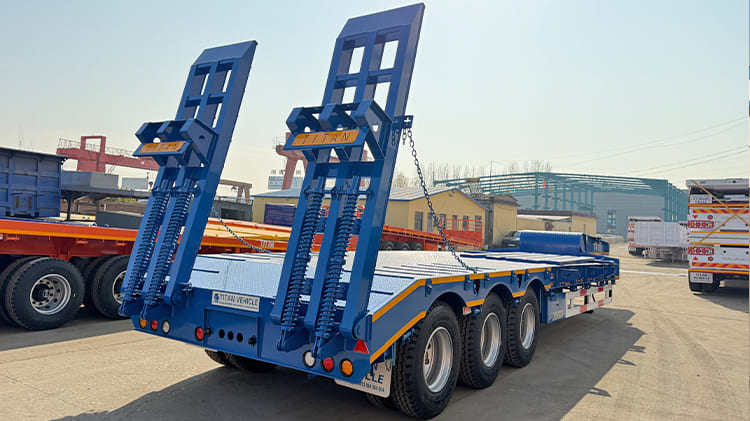

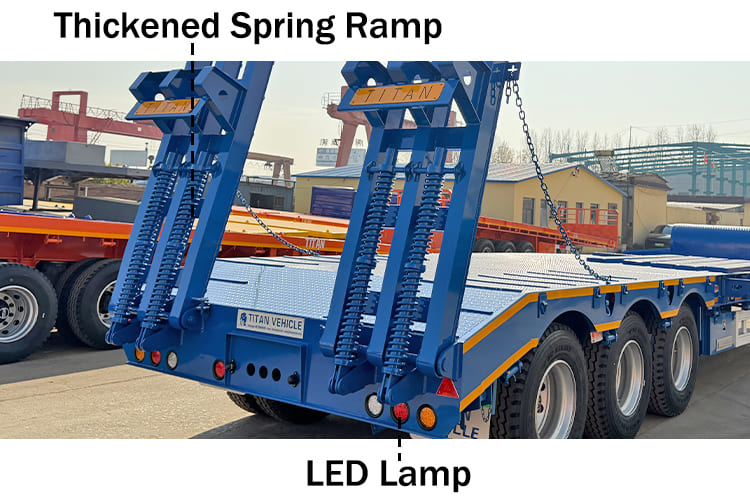

A key highlight of the low bed semi trailer for sale configuration is its upgraded spring-assisted ramp system. Constructed from 16 mm thick steel plates, the ramps feature an adaptive angle-adjustment mechanism that cushions impact during machinery loading.

This efficiency helps fleet operators enhance turnaround speed and maintain high transport productivity, making the 3 axle low bed trailer price and 40 feet low bed trailer reliable assets for long-term use across Sierra Leone.

Shipping of Lowbed Trailer Price

Before shipment, every semi low bed trailer receives a multilayer protective treatment. TITAN applies an anti-corrosion wax that shields the steel components from moisture and salt exposure. The entire low bed semi trailer for sale is wrapped with a durable waterproof tarpaulin. This dual-seal packaging ensures that the 40 ft low bed trailer units arrive in excellent factory condition, even after extended sea journeys to regions such as Sierra Leone.
