Tipper Semi Trailer Price: 16200 USD
The rear door of the semi tipper is specifically designed to make cargo handling more efficient. Its structure allows for smoother loading and unloading, which contributes directly to faster operations and improved productivity on the job site in Sierra Leone.

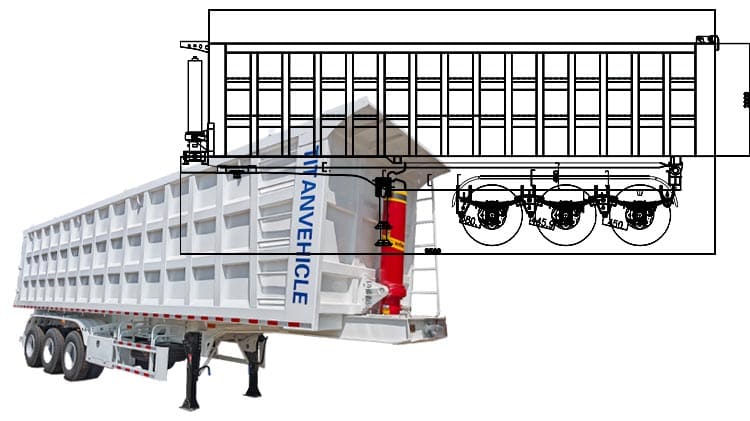

Specification of Semi Tipper
Dimension: 9000mmx2500mm x3950mm
Load Capacity: 60 ton
Volume: 35CBM

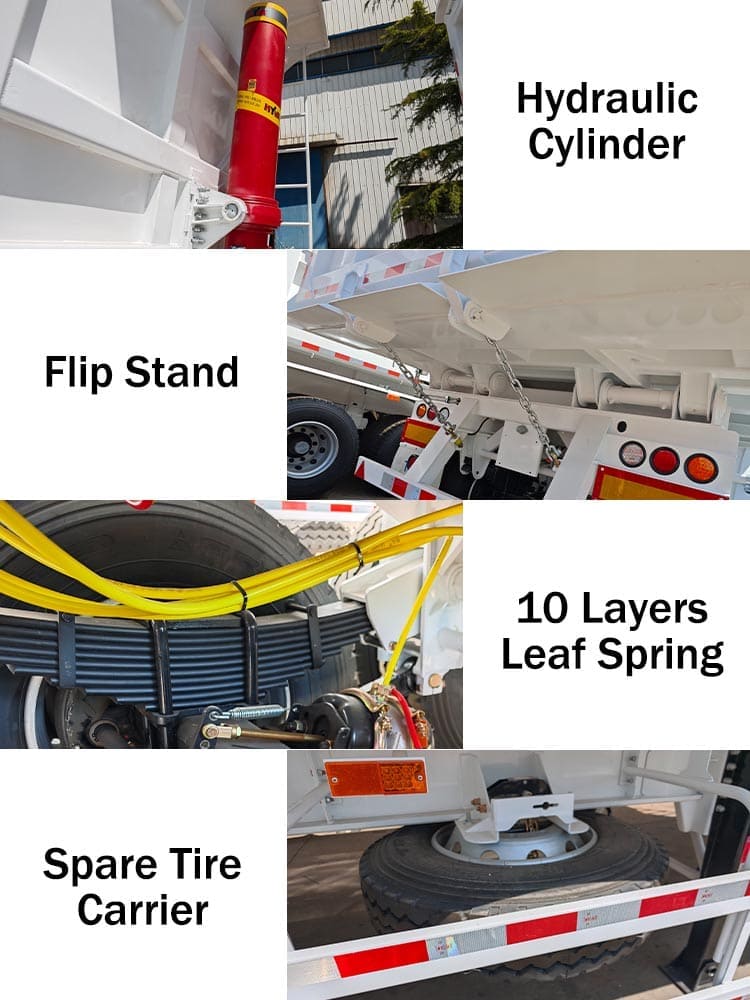

Tipping System: hydraulic cylinder
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 12R22.5
Kingpin: JOST brand, 2.0 /3.5inch
Landing Gear: 28 ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
Advantage of Tipper Trailer
At the heart of the tipper semi trailer frame is the main beam, constructed from T700 high-strength steel. The advanced material provides superior tensile and yield strength over standard steel, offering better resistance against bending or deformation when transporting heavy or unevenly distributed cargo.
The tipper trailer suspension system is engineered to absorb shocks from rough roads which helps protect the cargo and reduces stress on the frame during transport. A 70mm center balance pin is integrated into the suspension to stabilize the trailer with tipper and reduce tire wear caused by vibration. Additionally, the 10-layer leaf spring setup improves the system ability to withstand road impacts and vibrations, enhancing overall driving stability in Sierra Leone.
The landing gear is built to support heavy loads and is designed to distribute weight evenly across the ground that can prevent the landing gear from sinking on soft or uneven surfaces and ensures the trailer with tipper remains stable during parking or loading.
In terms of lighting, the semi tipper has been upgraded with bright LED lights. The lamp offer greater visibility during night-time driving or in poor lighting conditions in Sierra Leone, enhancing road safety and making the tipper trailer more noticeable to other drivers.
To further reduce structural fatigue, the semi tipper is fitted with four flip stands. The stands support help balance the weight more evenly across the tipper trailer body, reducing pressure on key structural areas and extending the service life.
Shipping of Trailer with Tipper
Before shipment, each trailer with tipper is first coated with protective wax to create a sealed barrier against moisture and air. Following the treatment, a waterproof covering is added, offering additional defense against environmental damage during transport.
