Hydraulic Dump Trailer Price: 17500 USD

The TITAN dump trailer for sale is engineered to meet the rigorous demands of modern construction and transport operations, offering a combination of high load capacity, durability, and ease of use. Its advanced design ensures that the end dump trailer performs reliably in bulk material handling, providing operators in Sierra Leone with a safe, efficient, and high-performing solution for construction, mining, and industrial applications.

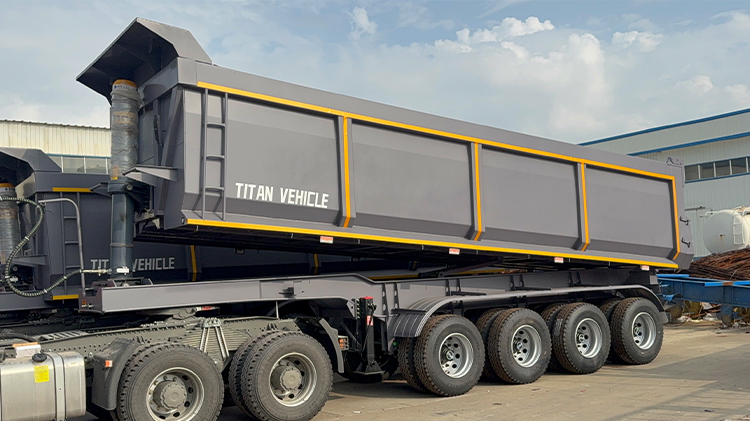

Hydraulic End Dump Trailer for Sale in Sierra Leone

Hydraulic End Dump Trailer for Sale in Sierra Leone

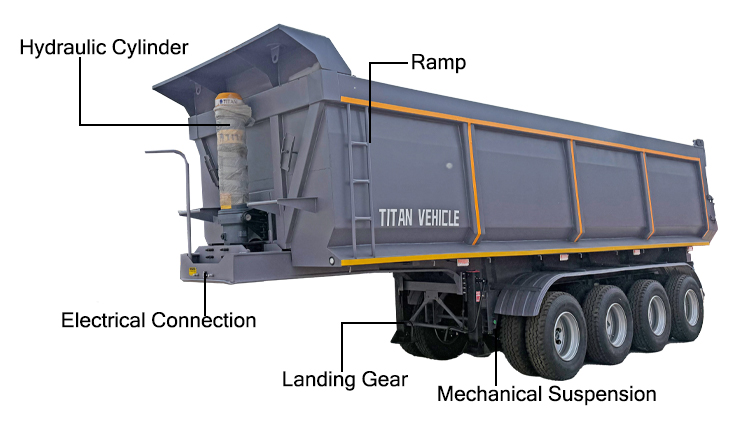

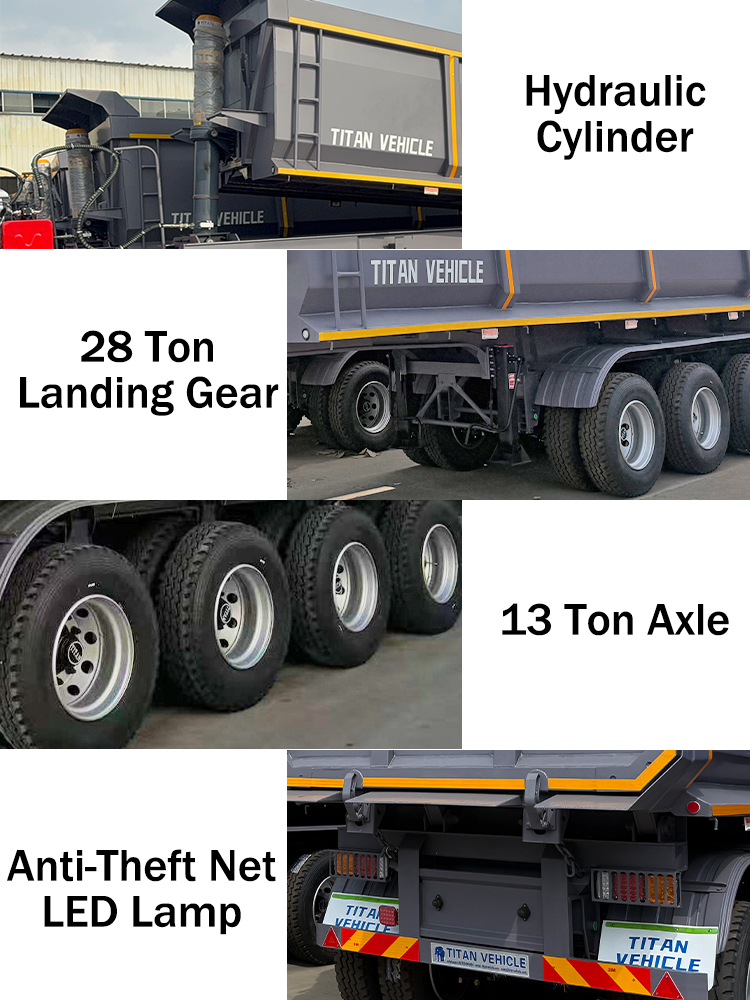

Specification of End Dump Trailer

Dimension: 11000mm*2500mm*3950mm

Volume: 35 CBM

Load Capacity: 80 ton

Tipping System: hydraulic cylinder system

Landing Gear: JOST 28 ton

Axles: 3 axles, 13ton, TITAN brand

Kingpin: JOST brand 2.0 /3.5inch

Leaf Spring: 10 layers

Suspension: mechanical suspension

Lamp: LED Lamp with protective net

Tire: 16 units

Shipping of Hydraulic Dump Trailer

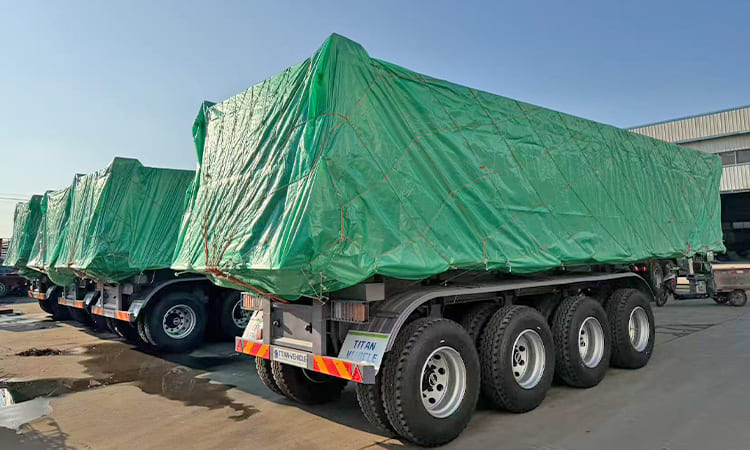

Prior to shipment, TITAN applies a thorough two-stage corrosion protection process. Each end dump trailer receives a specialized anti-rust wax coating, followed by a custom waterproof tarp covering.

This double-layer protection shields the trailer from moisture, sea air, and salt exposure during transport, ensuring that the hydraulic dump trailer arrives in Sierra Leone in optimal condition, ready for immediate deployment while maintaining its strength, appearance, and long-term performance.

Advantage of Hydraulic Dump Trailer

At the core of the trailer is a main beam made from high-strength steel, chosen for its exceptional tensile strength and resistance to bending or deformation. This robust construction enables the hydraulic dump trailer to maintain excellent stability even under heavy loads. Reinforced vertical support columns along the side beams further enhance structural rigidity, reducing the risk of warping or flexing during cornering, abrupt stops, or uneven load shifts. These improvements make the dump trailer for sale highly adaptable to the challenging terrains and variable working conditions commonly found across Sierra Leone, including remote mining sites and busy urban construction zones.

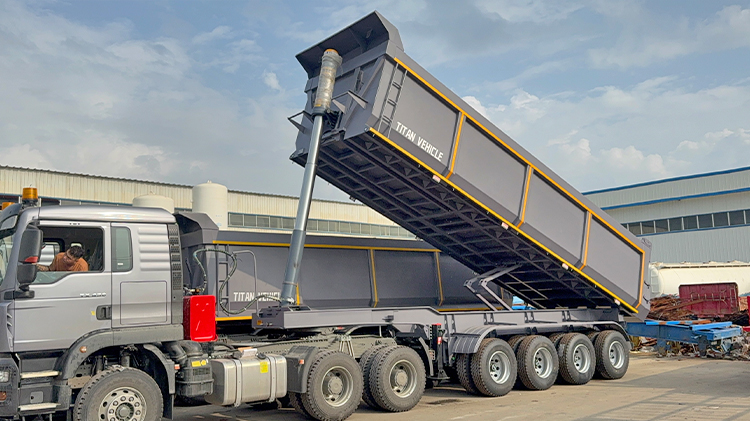

The lifting system is a standout feature of the end dump trailer. Equipped with a compact, high-efficiency hydraulic setup, the mechanism allows precise, controlled lifting and lowering of bulk cargo. This system significantly improves operational efficiency, especially in tight spaces such as ports, mining yards, and confined construction areas in Sierra Leone, while reducing manual labor and enhancing overall safety.

For braking and operational safety, the hydraulic dump trailer is fitted with 16-ton capacity brake pads that provide consistent, powerful stopping power under full loads. High-pressure rubber air lines protect the system, maintaining reliable performance over prolonged use. The electrical system is built to withstand harsh environments, ensuring the dump trailer for sale remains fully functional and dependable even during extended periods of operation.
