40 Ft Low Bed Trailer Price: 16300 USD

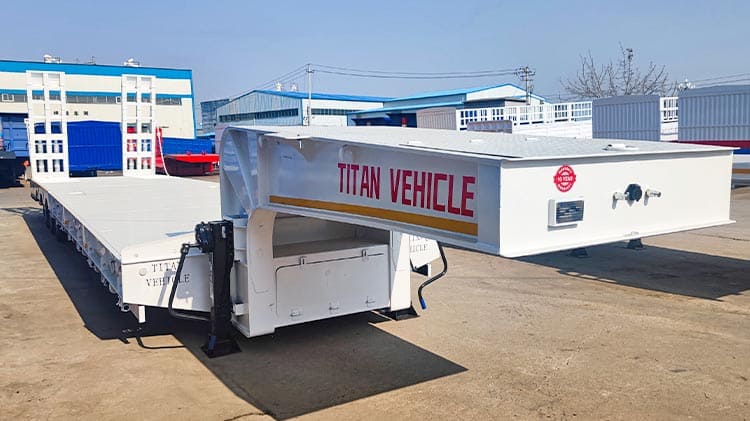

The low floor height of the TITAN low bed trailer truck plays a crucial role in maintaining a low center of gravity during transportation. ThE design helps reduce the chances of equipment bumping or tipping over, especially in emergency situations or on uneven terrain.
Specification of 40 Ft Low Bed Trailer

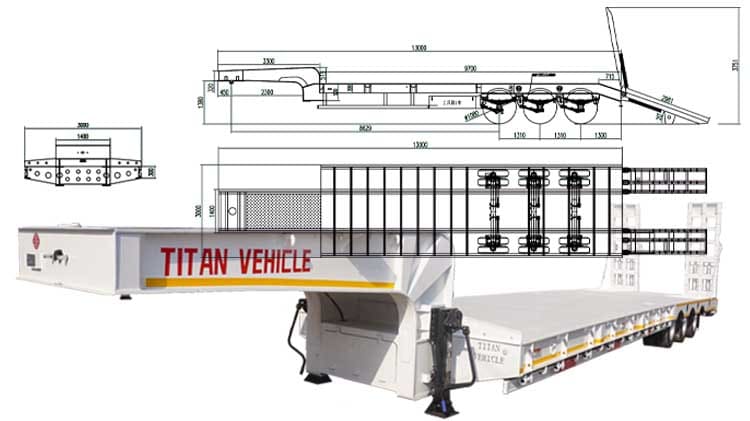

Overall Dimension: 13000mm*3000mm*1710mm
Load Capacity: 60 ton

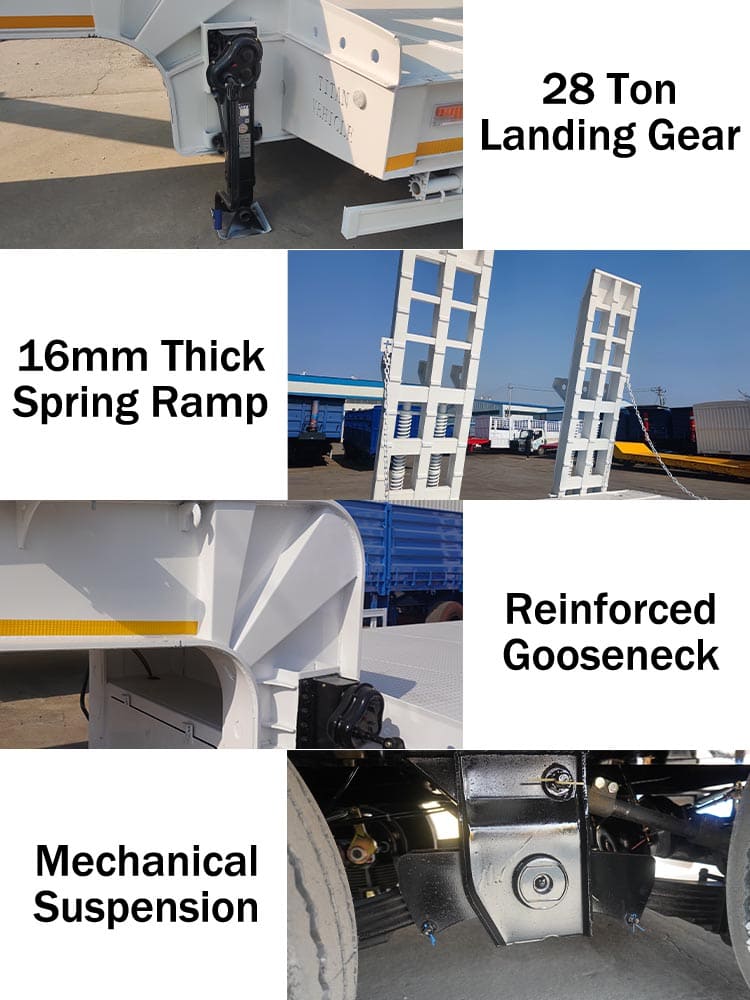

Landing Gear: 28 ton, FUWA brand
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 245/70R17.5

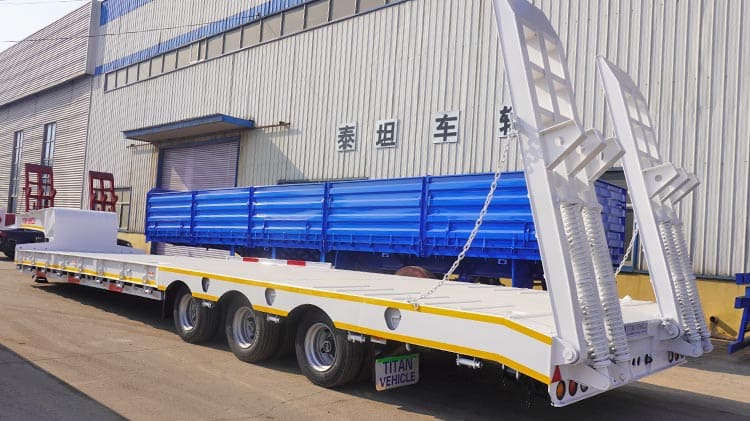

Ramp: thickened spring ramp
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high, 8mm thick
Shipping of Low Bed Trailer Truck

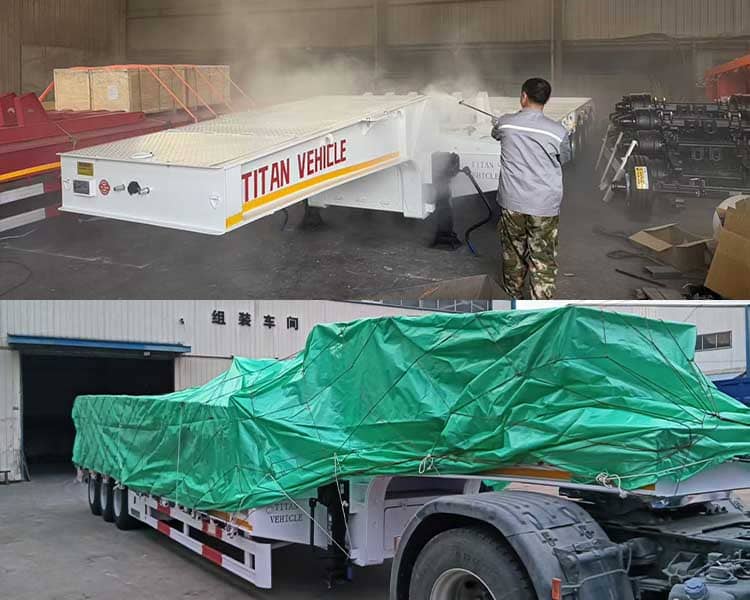

During packaging for shipment, TITAN adopts a dual-protection strategy. Each truck trailer low bed is coated with moisture-resistant wax and then wrapped in waterproof cloth. The method creates a sealed barrier against the effects of humidity and saltwater, ensuring the low bed trailer truck arrives in excellent condition in Sierra Leone.
Advantage of Truck Trailer Low Bed
The truck trailer low bed main beam is made from Q460 high-strength steel, which offers superior tensile strength and load-bearing capabilities compared to standard steel. The material choice improves the structural integrity and ensures can handle demanding loads with increased reliability.
The gooseneck area of the main beam is further reinforced using a double vertical plate process, forming a composite support system that minimizes deformation even under heavy stress, maintaining transportation stability.
To keep equipment secure during transit, the 40 ft low bed trailer is fitted with a rope tightener that features a quick-lock mechanism which allows Sierra Leone users to make precise adjustments with ease.
Working together with the reinforced floor plate, the rope tightener forms a multi-directional restraint system. The setup helps prevent slippage of equipment when making sudden turns or braking sharply.
For safety performance, the braking system includes 16-ton brake pads, designed for fast response and improved braking control in emergencies. In addition, the low bed trailer truck pipeline system uses rubber material that is resistant to high pressure, extending the service life of important components under daily use.
The lighting system has also been upgraded. High-intensity LED lamps provide better visibility in low-light or foggy conditions, while the impact-resistant housing protects from damage to truck trailer low bed caused by gravel and rough road surfaces in Sierra Leone.
