Trailer Goldhofer Price: 180000USD
Modular trailer goldhofer for sale in Sierra Leone Freetown with exceptional load bearing capacity and flexible configuration, are widely used in large scale logistics and project transport. Their modular design allows for flexible assembly to adapt to varying load requirements, combining stability and efficiency, making them an ideal solution for large scale project transport.
Specification of Trailer Goldhofer
Name: Modular Trailer Goldhofer
Dimension: 22812mm*3000mm*1080(+280/-280)mm
Usage: Transport bridge and heavy duty cargo
Max Payload: 275 tons
Tires: 80 units
Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
Advantages of Modular Trailer
A global benchmark in specialized transport, the modular trailer goldhofer's overall advantage lies in the flexibility of its modular design and the revolutionary improvement in transport efficiency it offers. By standardizing core components such as the frame, running gear, and hydraulic system into independent modules, users can freely assemble trailer units, either longitudinally or transversely, based on cargo size, weight, and transport scenarios.

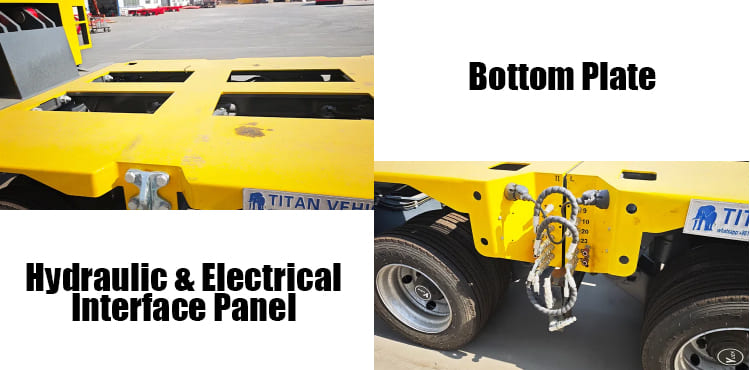

Specifically, the frame system is the core support of the modular trailer goldhofer for sale in Sierra Leone Freetown. Constructed from high strength alloy steel or composite materials, it combines lightweight construction with high load bearing capacity, easily handling the pressure of hundreds of tons of cargo. The modular frame is connected by bolts, and the joints are precisely calculated and reinforced to ensure structural stability even under extreme operating conditions.
The running gear is the key to the modular trailer goldhofer's flexible operation. Modular trailer goldhofer's hydraulic suspension system independently adjusts the load height of each wheel, enabling quick adjustments to the platform angle during loading and unloading, improving transport stability.
Modular trailer goldhofer for sale in Sierra Leone Freetown's all wheel steering technology, controlled hydraulically or electrically, allows each wheel to independently steer according to steering commands, significantly reducing the turning radius. This design allows even extra long trailer combinations to maneuver flexibly in narrow mining roads or urban tunnels, eliminating the steering difficulties associated with the long wheelbase of traditional trailers.

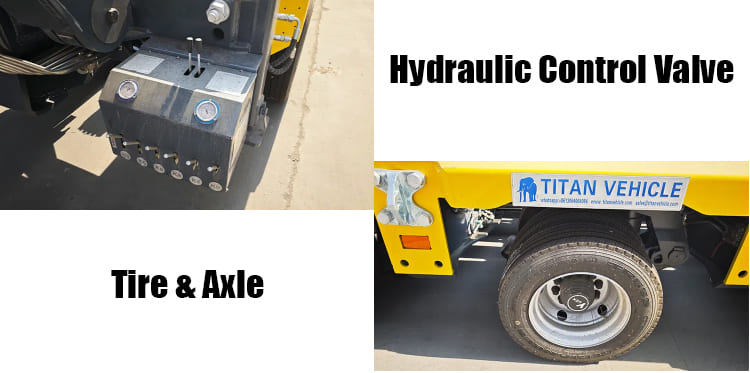

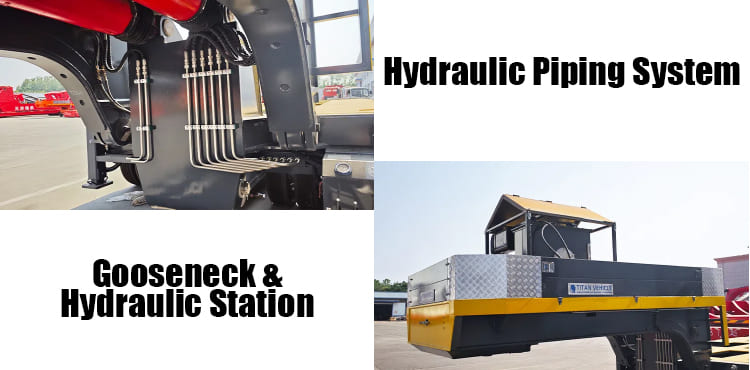

The hydraulic system is the key to the modular trailer goldhofer for sale in Sierra Leone Freetown. It integrates multiple functions, including height adjustment, axle compensation, and steering control. Its central processor monitors transport status in real time and automatically adjusts parameters. When loading overweight cargo, the modular trailer goldhofer's hydraulic system evenly distributes load across all axles, preventing structural damage caused by local overload.
When navigating bumpy roads, the hydraulic shock absorber quickly absorbs impact and reduces cargo vibration. Modular trailer goldhofer hydraulic system also supports remote control, allowing operators to precisely adjust the trailer's posture through the console, further improving transportation efficiency and safety.
