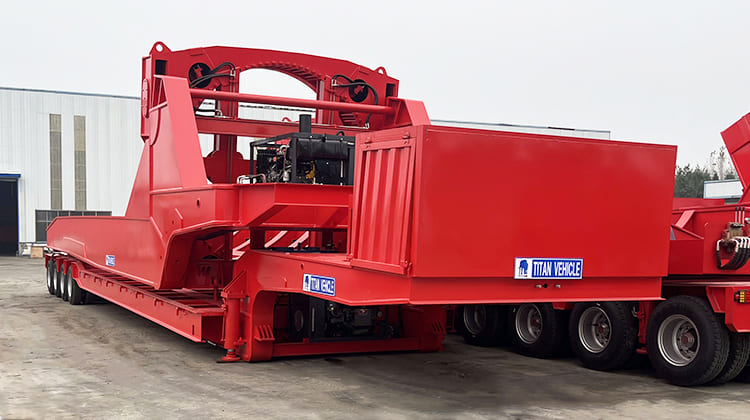

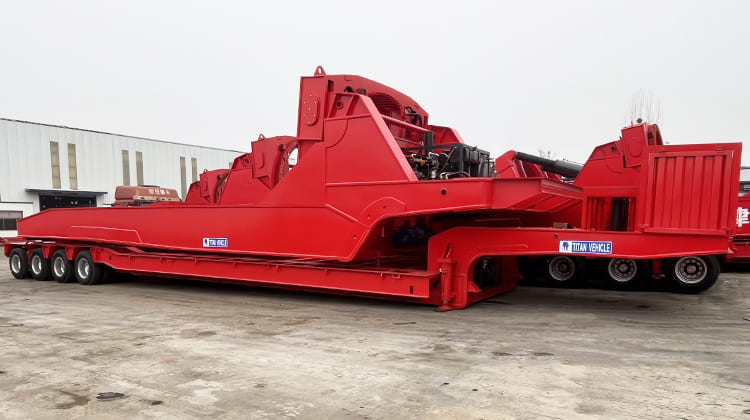

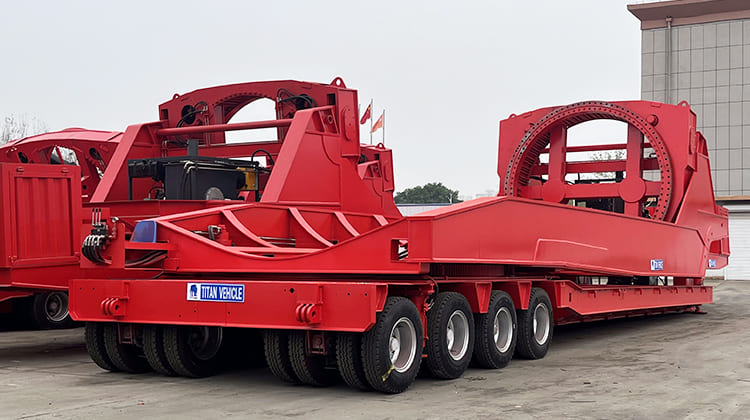

Wind Blade Adapter Trailer Price: 120000USD

The rotor blade adapter trailer for sale in Sierra Leone is a specialized semi trailer designed for transporting ultra long and ultra large wind turbine blades, featuring a robust structure and flexible steering capabilities.

Wind rotor blade trailer is primarily used for long distance transportation in wind farm projects, transportation on mountain roads, and efficient transfer of blades from the manufacturing plant to the installation site.

Specification of Wind Blade Adapter Trailer

Dimension: 19500mm*3400mm*4650mm

Applicable blade: 56.5m-76m

Axle: 4 lines 8 axles

Tires: 32 units

Max rotation angle: 360°

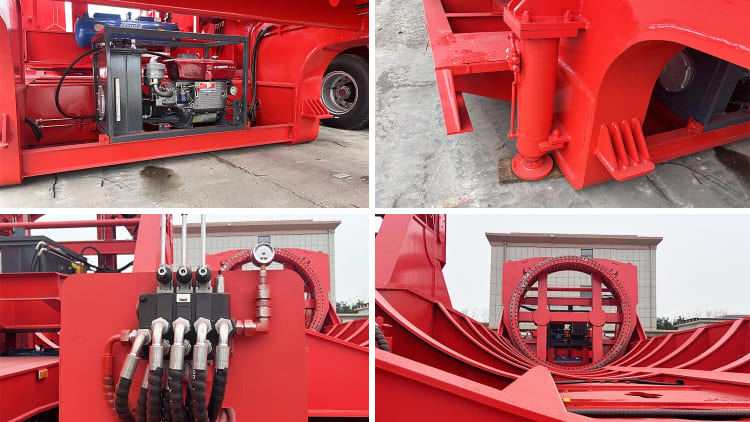

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm

Advantages of Rotor Blade Adapter Trailer

The core advantages of the wind blade adapter trailer lie in its stable and reliable structure and wide adaptability. Rotor blade adapter trailer for sale in Sierra Leone can meet the needs of long distance transportation on ordinary roads and overcome the challenges of secondary transfers in complex road conditions such as steep mountainous areas, combining ease of operation with safety.

The wind rotor blade trailer for sale in Sierra Leone features a low center of gravity design, coupled with a body constructed from high quality steel, ensuring load bearing strength while controlling total weight. It is safe and stable when fully loaded and more economical when unloaded.

The wind blade adapter trailer can be flexibly adjusted to fit wind turbine blades of different lengths. Through a scientifically designed weight distribution, it reduces reliance on additional counterweights, further enhancing transportation safety.

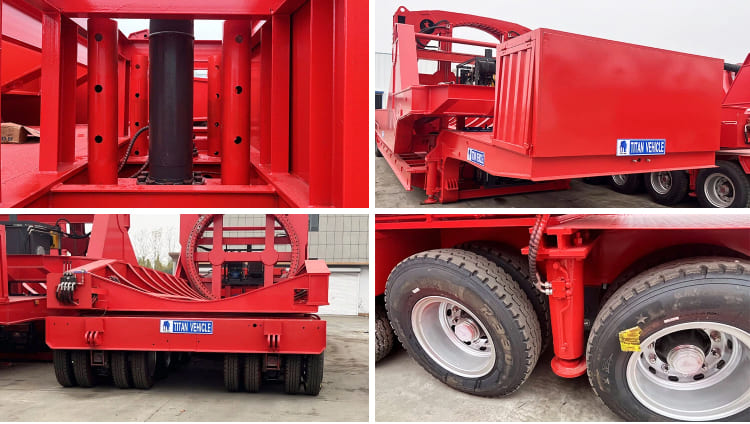

The frame, as the core load bearing component of the wind rotor blade adapter trailer for sale in Sierra Leone, adopts a snap fit ​​design and H beam longitudinal beam cross section. The stepped structure provides high rigidity and strength, while the single beam design further enhances the stability of wind turbine blade transportation.

The wind rotor blade trailer's work platform boasts a powerful telescopic capability, allowing for over three times the extension length to accommodate wind turbine blades of varying lengths. The mountain transport version can also lift the wind turbine blades using a slewing frame, and with its 360 degree rotation function, easily avoids obstacles such as trees, mountains, and power lines. In windy conditions, it can rotate to avoid wind and ensure safety.

The wind blade adapter trailer's design highlights include a low profile flatbed structure that allows for controllable overall height after installation, significantly improving driving stability. The turntable on the rear axle connects to the work platform, significantly optimizing turning performance and solving the steering challenges of transporting long wind turbine blades.

The rotor blade adapter trailer's suspension system offers multiple options. The axle balanced design, combined with mass counterweights between the front and rear leaf springs, ensures equal force distribution on the front and rear leaf springs, resulting in more even axle load distribution and further enhancing driving stability and load bearing reliability under complex road conditions.
