Self Propelled Transporter Price: 230000USD

Self propelled modular transporter in Sierra Leone is a cutting edge heavy duty engineering transport platform, composed of multiple electric drive modules. Self propelled transporter spmt trailer boasts a load capacity exceeding 100 tons and flexible, precise autonomous control.

Designed specifically for transporting large, indivisible components such as ship sections, chemical plant modules, and bridge hulls, the self propelled modular transporter revolutionizes the handling of traditional oversized cargo.

Specification of SPMT Trailer

Dimension: 16800mm*2430mm*1500mm

Usage: Transport heavy duty cargo

Max Payload: 500 tons

Tires: 48 units

Suspension type: Hydraulic lifting steering

Landing gear: Front and rear hydraulic support cylinder

King pin: 2.00 or 3.5 inch bolt-in king pin

Advantages of Self Propelled Transporter

The self propelled transporter spmt trailer in Sierra Leone is a high end engineering vehicle designed specifically for transporting ultra-large and ultra heavy equipment. Self propelled modular transporter's modular design allows for independent operation or coordinated operation to meet the transport needs of cargo of varying tonnage and dimensions.

With a maximum load capacity of 500 tons, the self propelled transporter spmt trailer in Sierra Leone is widely used in oversized transport applications, such as wind turbine equipment, ship modules, bridge components, and chemical plants.

In terms of overall performance, the self propelled modular transporter in Sierra Leone boasts strong load bearing capacity, precise handling, and exceptional stability. Constructed of high strength structural steel, the self propelled transporter spmt trailer's frame is designed using finite element analysis to ensure exceptional torsional rigidity and safety even under heavy loads and complex operating conditions. Self propelled modular transporter's hydraulic suspension system automatically balances each axle, maintaining stability on uneven surfaces and effectively reducing the risk of tilting and vibration of cargo.

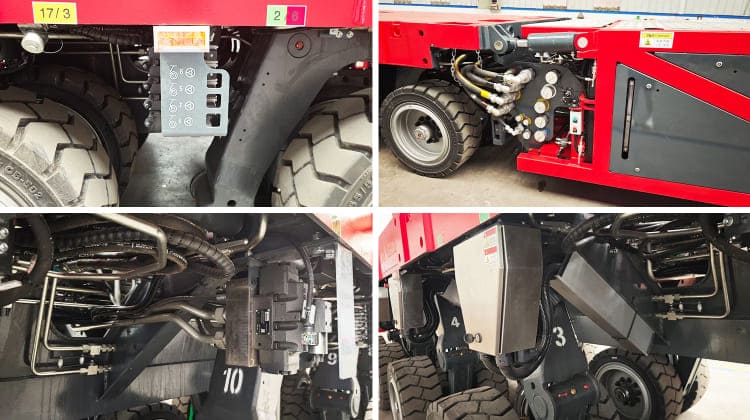

The self propelled transporter spmt trailer in Sierra Leone utilizes imported hydraulic components for precise pressure control and responsive system response. Electro hydraulic proportional control technology enables coordinated control of lifting, steering, and travel, ensuring the self propelled modular transporter remains stable and controllable even when transporting large equipment. Each axle of the self propelled transporter spmt trailer features independent lifting capabilities, automatically adjusting height based on terrain, and enabling adaptive load distribution.

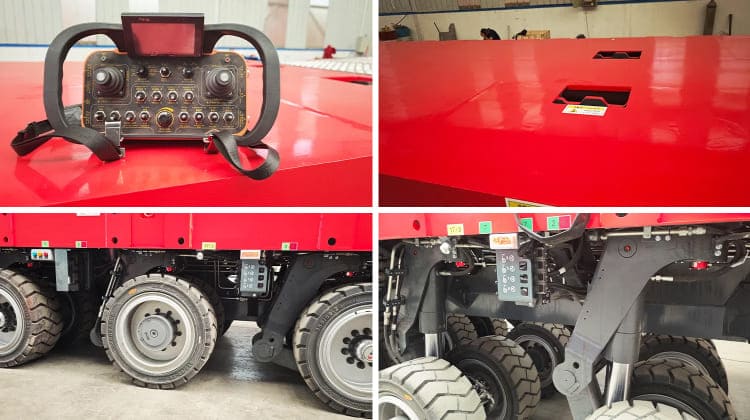

The self propelled modular transporter in Sierra Leone's control system features both wireless remote control and wired control, allowing operators to precisely operate from a safe distance. Multiple self propelled transporter spmt trailer's can be synchronized via a computer, enabling complex maneuvers such as parallel and series operation and lateral travel, ensuring flexible, safe, and reliable operation.

The self propelled modular transporter in Sierra Leone's axle utilizes a high strength steering axle structure, offering a steering angle of ±135° and a tight turning radius, making it suitable for operation in confined spaces. The self propelled transporter spmt trailer's wheels feature wear resistant solid rubber tires, providing strong load capacity and a long service life, making them suitable for navigating complex terrain.

The self propelled modular transporter in Sierra Leone's powertrain is equipped with a high power diesel drive unit (PU), delivering powerful power and energy efficiency. The system features intelligent energy distribution, automatically adjusting output power based on load and operating conditions, improving fuel efficiency and reducing energy consumption.
